Chapter 21 - Mobile Architecture with Angular, Ionic, and Capacitor

The mobile application is both a user interface and a sensor system. Web technology is effective for forms, tasks, session controls, and shared product code. Reliable background location requires native Android and iOS components.

Responsibility split

The Angular/Ionic layer owns:

• authentication and organization selection;
• device enrollment;
• shift and session workflows;
• task lists and proof-of-delivery screens;
• diagnostics and settings;
• secure display of tracking state;
• synchronization status;
• user-visible errors.

The native layer owns:

• OS location APIs;
• foreground/background execution;
• permission state;
• sampling and activity hints;
• battery-aware policy;
• local point persistence;
• wake-up and retry integration;
• platform diagnostics.

The bridge passes versioned commands and events. It does not stream raw positions through JavaScript before persistence.

Local SQLite queue

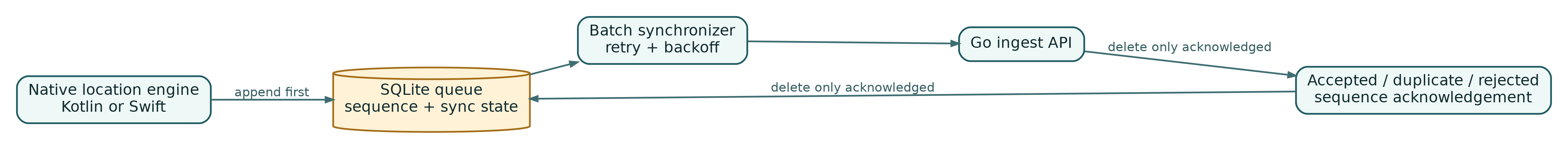

The native engine writes every accepted local observation to SQLite before considering network delivery:

mobile_location_points
  point_id
  sequence_epoch
  sequence_number
  session_id
  recorded_at
  latitude
  longitude
  accuracy_m
  altitude_m
  speed_mps
  heading_deg
  battery_percent
  activity
  sync_state
  attempt_count
  last_error_code
  created_at

Use transactions and migrations. Encrypt sensitive values when the threat model and platform capabilities justify it, but do not claim that application-level encryption protects a fully compromised device.

Synchronizer

The synchronizer selects a bounded ordered batch, marks it as in-flight through a lease, sends it, and applies the server response transactionally.

State transitions can be:

pending -> in_flight -> acknowledged -> deleted
                    \-> pending after retryable failure
                    \-> rejected after permanent failure

On app or process restart, expired in-flight leases return to pending. The client keeps rejected points for diagnostics until policy deletes them or the user submits a support report.

Enrollment

A human user signs in and receives a short-lived enrollment grant. The native module generates installation identity and secure key material where possible. The app exchanges the grant for a device credential stored in OS-backed secure storage.

Reinstall and device replacement create a new installation. Do not silently reuse an old device record based only on a mutable hardware identifier.

Session UX

When tracking a person, the active state must be unmistakable. The app shows:

• tracking active or inactive;
• session activity and purpose;
• start time and elapsed time;
• GPS and network status;
• unsent point count;
• battery impact information;
• stop or pause control when policy permits;
• support and privacy information.

Background tracking must not be disguised as a normal notification or hidden from platform privacy indicators.

Policy adaptation

The server provides a requested sampling profile, but the native engine combines it with OS constraints and local conditions:

• moving versus stationary;
• battery level and charging state;
• accuracy availability;
• network availability;
• task urgency;
• session type;
• thermal or low-power mode;
• significant-location or activity events.

The app records the effective policy and changes so field diagnostics can explain battery use and gaps.

Diagnostics

A support bundle can include redacted, bounded information:

• app and native module versions;
• permission state;
• background execution status;
• device clock skew estimate;
• queue counts and oldest pending age;
• last successful upload time;
• recent error codes;
• effective sampling policy;
• battery and network summaries.

It should not include access tokens, exact full route history, or raw personal data unless the user explicitly approves a controlled export.

Bridge contract

Example commands:

interface StartTrackingCommand {
  contractVersion: 1;
  sessionId: string;
  deviceId: string;
  activity: 'driving' | 'delivery' | 'cycling' | 'running' | 'walking';
  policy: TrackingPolicy;
}

Example events:

interface TrackingStatusEvent {
  contractVersion: 1;
  state: 'starting' | 'active' | 'paused' | 'stopping' | 'stopped' | 'error';
  queuedPoints: number;
  lastRecordedAt?: string;
  lastSyncedAt?: string;
  errorCode?: string;
}

Generate or validate both Kotlin/Swift and TypeScript definitions from a shared schema where practical.

Chapter checklist

A reliable mobile architecture:

• separates web UI from native location execution;
• persists before network delivery;
• uses leased queue states and explicit acknowledgements;
• enrolls each installation independently;
• makes tracking visible and controllable;
• adapts policy without hiding effective behavior;
• provides redacted field diagnostics;
• versions the native bridge contract.
