Part III - The Location Data Plane

Chapter 11 - Design the Location Ingestion Contract

The ingestion API is the highest-volume public contract in the platform. It must accept offline batches, distinguish duplicates from rejections, authenticate devices independently, and return enough information for a client to safely delete acknowledged data.

Batch instead of one request per point

Mobile devices should persist points locally and upload batches. Batching reduces radio use, TLS overhead, server request volume, and transaction overhead. A batch still has limits:

• maximum body size;
• maximum point count;
• maximum time span;
• supported schema version;
• maximum metadata size;
• maximum accepted age;
• compression policy.

A representative request is:

POST /api/v1/location-batches HTTP/1.1
Authorization: Device eyJ...
Idempotency-Key: 0195f8c0-...
Content-Type: application/json

{
  "schema_version": 1,
  "batch_id": "0195f8c0-...",
  "device_id": "0195d001-...",
  "subject_id": "0195a901-...",
  "session_id": "0195e442-...",
  "first_sequence": 4100,
  "points": [
    {
      "sequence": 4100,
      "recorded_at": "2026-10-10T10:00:01.125Z",
      "latitude": 44.81233,
      "longitude": 20.46112,
      "accuracy_m": 6.4,
      "altitude_m": 117.2,
      "speed_mps": 5.8,
      "heading_deg": 182.0,
      "battery_percent": 74,
      "activity": "cycling"
    }
  ]
}

The device_id, subject_id, and session_id are repeated in the authenticated context and validated. A client cannot select an arbitrary subject merely by changing JSON.

Device authentication

A device token has a narrow audience and scope. Validation includes:

• token signature or opaque-token hash;
• credential version and revocation status;
• device status;
• organization binding;
• allowed ingestion schema;
• optional certificate or key confirmation;
• request size and rate policy.

The handler converts the credential into a DevicePrincipal. It does not reuse a human user principal.

Validation order

Validate cheap, global conditions before database work:

1. method and content type;
2. body-size limit;
3. JSON syntax and schema version;
4. point-count limit;
5. finite numeric values and coordinate ranges;
6. timestamp parse and gross future limit;
7. sequence syntax and monotonic shape.

Then validate authenticated relationships and state:

8. active device and credential;
9. subject and organization binding;
10. assignment or session authorization at each relevant time;
11. activity compatibility;
12. batch and point idempotency.

Do not reject an entire useful batch because one point is malformed unless the contract explicitly uses all-or-nothing behavior. A partial result is often better for offline clients, but its semantics must be exact.

Response semantics

A successful acceptance response can return ranges to remain compact:

{
  "batch_id": "0195f8c0-...",
  "status": "accepted_with_rejections",
  "accepted": [[4100, 4147], [4149, 4152]],
  "duplicates": [[4148, 4148]],
  "rejected": [
    {
      "sequence": 4153,
      "code": "timestamp_too_far_in_future"
    }
  ],
  "next_expected_sequence": 4154,
  "server_received_at": "2026-10-10T10:03:12.031Z"
}

The client deletes only accepted and duplicate points. Rejected points move to a visible diagnostics state or are corrected according to a defined rule. They must not retry forever without explanation.

Return 202 Accepted only when the durable contract supports later processing and the batch itself is safely stored. Return 201 or 200 for synchronous durable insertion. The status code is less important than documented durability.

Transaction boundary

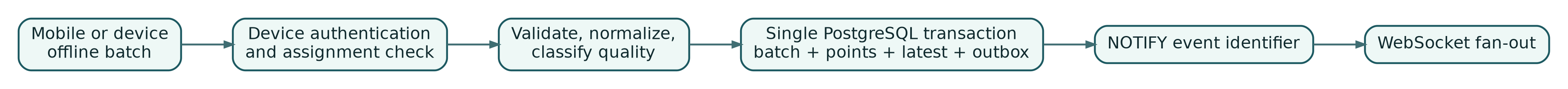

Within one transaction, the ingestion service should:

1. reserve or load the batch idempotency record;
2. validate assignment/session state consistently;
3. insert accepted location facts;
4. update sequence state;
5. update the latest-location projection conditionally;
6. append durable outbox events;
7. append a compact ingestion audit summary;
8. commit.

A NOTIFY executed in the transaction is delivered after commit. It is a wake-up, not the event itself.

Backpressure

When the database is saturated, the API should fail safely rather than accept data into an unbounded memory queue. Use:

• strict body limits;
• request concurrency limits;
• database acquisition timeouts;
• bounded per-request work;
• clear retryable error codes;
• randomized client retry backoff;
• server hints such as Retry-After where appropriate.

The mobile queue is the durable buffer before server acceptance. The server's responsibility begins only after it confirms a durable commit.

Go handler shape

A handler should be thin:

func (h *Handler) IngestBatch(w http.ResponseWriter, r *http.Request) {
    principal, err := deviceauth.FromContext(r.Context())
    if err != nil {
        writeError(w, ErrUnauthorized)
        return
    }

    req, err := decodeLimitedJSON[IngestBatchRequest](w, r, h.maxBody)
    if err != nil {
        writeError(w, err)
        return
    }

    result, err := h.service.AcceptBatch(r.Context(), principal, req)
    if err != nil {
        writeError(w, err)
        return
    }
    writeJSON(w, http.StatusOK, result)
}

The service owns validation and transaction behavior. The handler owns HTTP parsing and rendering.

Chapter checklist

A production ingestion contract has:

• independent device authentication;
• bounded batch size and schema versioning;
• cheap validation before database work;
• explicit accepted, duplicate, and rejected results;
• safe client deletion semantics;
• one durable transaction for facts and events;
• bounded concurrency and retryable overload behavior;
• no unbounded in-memory acceptance queue.
